Helmet Type Hairdryer Test Apparatus
Safety & Performance Testing System for Helmet-Type Hairdryers

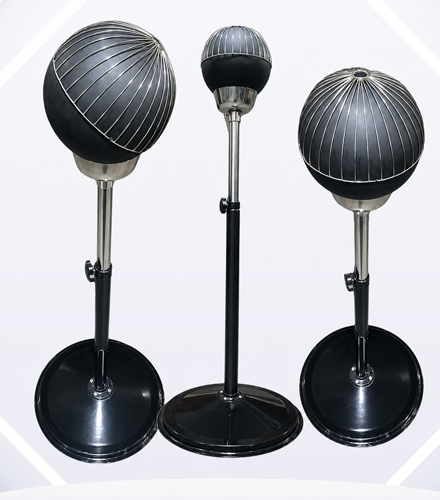

Sensotech Instruments Inc. manufactures a precision-designed Helmet Type Hairdryer Test Apparatus developed for conducting safety, heating, and operational performance tests on helmet-type hairdryers according to IEC 60335-2-23 and IS 302-2-23 standards. The testing device is specially designed to comply with the requirements of IEC 60335-2-23 Clause 3.1.9 for evaluating the operating characteristics and thermal behavior of helmet-type hairdryers under specified testing conditions. The complete apparatus consists of a test bench, dull black-painted wooden sphere, and wire frame arrangement designed for accurate and repeatable testing operations. During testing, the helmet-type hairdryer is operated with the axis of the hood inclined at an angle of up to 60° to the horizontal or at the maximum angle permitted by the construction of the appliance. A specially designed dull black-painted wooden sphere of 200 mm diameter is positioned inside the hood so that the center of the sphere coincides precisely with the axis of the hood. The testing arrangement maintains a shortest distance of 50 mm between the sphere and the air outlet grille for standardized airflow and temperature evaluation. For hairdryers equipped with flexible hood attachments, the hood attachment is placed over the specified wire frame arrangement as per standard figure requirements, with the frame positioned accurately over the wooden sphere. The apparatus is manufactured using high-quality structural materials for dimensional accuracy, stable operation, and long service life. The system ensures accurate simulation of actual operating conditions for evaluating airflow distribution, temperature rise, heating performance, and safety compliance of helmet-type hairdryers. The Helmet Type Hairdryer Test Apparatus is widely used in electrical appliance industries, testing laboratories, certification laboratories, research centers, and quality assurance departments for compliance testing and product safety evaluation.
Technical Features
- Designed according to IEC 60335-2-23 and IS 302-2-23 standards.
- Complies with IEC 60335-2-23 Clause 3.1.9 requirements.
- Complete setup includes test bench, wooden sphere, and wire frame arrangement.
- Dull black-painted wooden sphere with 200 mm diameter.
- Adjustable mounting arrangement for positioning hood angle up to 60°.
- High-quality construction for stable and accurate testing operation.
Testing Functions
- Evaluates operational and thermal performance of helmet-type hairdryers.
- Tests hairdryer operation with hood inclined at specified angles.
- Maintains standardized 50 mm distance between sphere and air outlet grille.
- Supports testing of flexible hood attachment type hairdryers.
- Simulates actual operating conditions for airflow and heating evaluation.
- Helps verify safety and compliance under standard test conditions.
Applications & Standards
- Suitable for helmet-type hairdryer testing and certification applications.
- Widely used in appliance manufacturing industries and testing laboratories.
- Ideal for research laboratories, certification agencies, and quality assurance departments.
- Helps manufacturers ensure product safety, performance, and standard compliance.
- Supports testing according to IEC 60335-2-23 and IS 302-2-23 standards.
