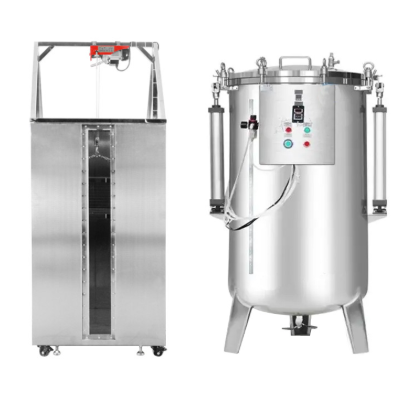

IPX7 & IPX8 Immersion Test Apparatus with Touch Screen - Floor Standing
Water Immersion Ingress Protection Testing System
Sensotech Instruments Inc. manufactures a precision-engineered IPX7 & IPX8 Immersion Test Apparatus designed for evaluating the waterproof performance of electrical and electronic products according to IEC 60529 ingress protection standards. The system is specially developed for conducting IPX7 temporary immersion testing and IPX8 continuous immersion testing under controlled laboratory conditions. During the IPX7 test, the specimen is immersed in water at a specified depth for a defined duration to verify protection against temporary water immersion. In the IPX8 test, the equipment performs continuous immersion testing at deeper water levels and longer exposure durations as required by product specifications. The apparatus is designed as a floor-standing automatic testing unit equipped with PLC-based control and touch screen HMI operation for accurate and user-friendly testing. The equipment features stainless steel water tanks, adjustable immersion depth, digital water level monitoring, programmable test timing, and automatic water circulation systems for reliable testing performance. The system is widely used in electronics industries, automotive industries, lighting products, testing laboratories, research centers, and quality assurance departments for waterproof compliance verification.
- Durable 304 Stainless Steel: Built with high-grade rugged stainless steel to ensure long service life and corrosion resistance.
- Tailored Tank Sizes: Custom tank dimensions are available to fit specific product testing requirements.
- Adjustable Depth Simulation: Supports customizable maximum test depths for different IPX8 waterproof testing standards.
- Powerful Pressure Management: Advanced pressurization system provides stable pressure holding and rapid pressure increase.
- Smart Preset Function: Easily set and save target pressure values and test durations for repeatable testing.
- Auto-Relief System: Automatically releases internal pressure once the test timer reaches zero.
- Optional Pneumatic Lift: Pneumatic cylinders support effortless lid opening and closing for improved operator safety.
- Reliable Safety Valves: Built-in safety relief valves ensure secure operation during high-pressure testing cycles.
- User-Friendly Interface: Simple and intuitive controls allow easy operation for professional waterproof testing.
Main Technical Specifications
| Model | AT-1005E-300-30 | AT-1005E-500-30 | AT-1005E-500-50 | AT-1005EI-600-30 | AT-1005EI-600-50 | AT-1005EA-350-10 | AT-1005EA-350-50 | AT-1005EA-500-10 | AT-1005EA-600-10 |
|---|---|---|---|---|---|---|---|---|---|
| Interior Dimensions | (Dia.) 300 × (H) 300 mm | (Dia.) 500 × (H) 500 mm | (Dia.) 500 × (H) 500 mm | (Dia.) 600 × (H) 1200 mm | (Dia.) 600 × (H) 1200 mm | (Dia.) 350 × (H) 400 mm | (Dia.) 350 × (H) 400 mm | (Dia.) 500 × (H) 500 mm | (Dia.) 600 × (H) 1200 mm |
| Overall Dimensions | (W) 470 × (D) 580 × (H) 910 mm | (W) 600 × (D) 800 × (H) 1050 mm | (W) 600 × (D) 800 × (H) 1050 mm | (W) 780 × (D) 850 × (H) 1750 mm | (W) 780 × (D) 850 × (H) 1750 mm | (W) 800 × (D) 550 × (H) 1000 mm | (W) 800 × (D) 550 × (H) 1000 mm | (W) 880 × (D) 650 × (H) 1180 mm | (W) 1000 × (D) 800 × (H) 1550 mm |
| Pressure Adjustment Range | 0 ~ 0.3 MPa | 0 ~ 0.3 MPa | 0 ~ 0.5 MPa | 0 ~ 0.3 MPa | 0 ~ 0.5 MPa |
Negative pressure -0.05 ~ 0 MPa Positive pressure 0.01 ~ 0.1 MPa |
Negative pressure -0.05 ~ 0 MPa Positive pressure 0.01 ~ 0.5 MPa |
Negative pressure -0.05 ~ 0 MPa Positive pressure 0.01 ~ 0.1 MPa |
Negative pressure -0.05 ~ 0 MPa Positive pressure 0.01 ~ 0.1 MPa |
| Simulated Water Depth Range | 0 ~ 30 meters | 0 ~ 30 meters | 0 ~ 50 meters | 0 ~ 30 meters | 0 ~ 50 meters | 0 ~ 10 meters | 0 ~ 50 meters | 0 ~ 10 meters | 0 ~ 10 meters |
| Applicable IP Rating Tests | IPX8 | IPX8 | IPX8 | IPX7 & IPX8 | IPX7 & IPX8 | IPX8 | IPX8 | IPX8 | IPX7 & IPX8 |
| Tank Materials | 3 mm thick 304 stainless steel (20 mm thick stainless steel flange) | 10 mm thick transparent acrylic (20 mm thick stainless steel flange) | 20 mm thick transparent acrylic (25 mm thick stainless steel flange) | 10 mm thick transparent acrylic (20 mm thick stainless steel flange) | 10 mm thick transparent acrylic (20 mm thick stainless steel flange) | ||||
| Pressure Sensor Accuracy | 0.001 MPa | ||||||||
| Pressure Sensor Deviation | ± 0.002 MPa | ||||||||
| Compressed Air Pressure Required | 0.6 ~ 0.8 MPa | ||||||||
| Protection Devices | Pressure safety valve and leakage switch | ||||||||
