Needle Flame Test Apparatus
Fire Hazard & Ignition Resistance Testing Equipment

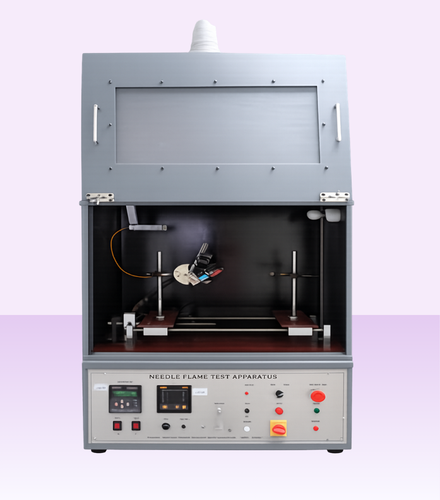

Sensotech Instruments Inc. offers a precision-engineered Needle Flame Test Apparatus designed for evaluating the fire hazard and ignition resistance characteristics of electrical and electronic products, insulating materials, and plastic components. The equipment is manufactured according to IS 11000-2-2 (2008) / IEC 60695-11-5:2016 standards for accurate and reliable flame testing performance. The apparatus consists of a draught-free test chamber with a minimum chamber volume of approximately 0.5 m³, ensuring stable testing conditions without airflow disturbances. The chamber is generally provided with a dark interior, observation window, and an integrated fume exhaust fan for safe operation and easy monitoring during testing. The system includes an adjustable burner mechanism capable of operating between 45° and 90° angles, allowing accurate flame application on the test specimen. Automated burner movement systems move the burner towards and away from the sample for consistent testing results. Modern units are equipped with PLC-based controls and HMI touch screen interfaces for automatic test sequence control, timer settings, and digital result recording. For flame calibration and temperature verification, the apparatus uses a K-type mineral insulated Inconel thermocouple (Ø0.5 mm) along with a standard copper block to ensure the flame temperature rises from 100°C to 700°C within 23.5 seconds as specified in the standard. The equipment also includes important safety features such as exhaust systems for combustion gas removal and optional remote-control operation for enhanced operator safety.
Technical Features
- Designed according to IS 11000-2-2 (2008) and IEC 60695-11-5:2016 standards.
- Draught-free chamber with minimum 0.5 m³ volume for stable flame testing conditions.
- Adjustable burner angle from 45° to 90°.
- Automated burner movement system for repeatable test operation.
- PLC and HMI touch screen control system for automatic testing sequences.
- Integrated observation window and dark interior for clear flame visibility.
Testing System
- Uses a K-type mineral insulated Inconel thermocouple for accurate flame temperature measurement.
- Standard copper block used for flame calibration verification.
- Flame temperature rise maintained from 100°C to 700°C within 23.5 seconds.
- Automatic timing and sequence control improve testing consistency and accuracy.
- Suitable for ignition resistance testing of plastics and electrical insulating materials.
Safety & Applications
- Equipped with exhaust fan system for removal of combustion fumes and gases.
- Optional remote-control operation enhances operator safety.
- Widely used in electrical, electronics, plastic, and appliance industries.
- Suitable for testing laboratories, quality control departments, and R&D centers.
- Helps evaluate fire hazard performance and achieve product safety compliance.
